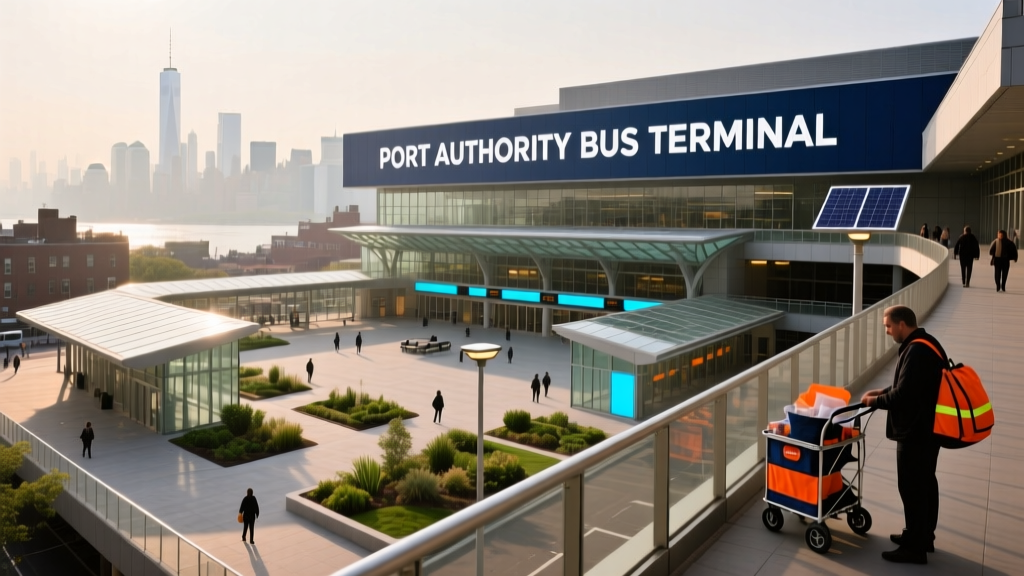

Beyond the Bustle: Inside the NYC Port Authority Bus Terminal’s $1.8 Billion Transformation

The Port Authority Bus Terminal (PABT) in Midtown Manhattan—long infamous for its cramped concourses, aging infrastructure, and sensory overload—is undergoing the most consequential overhaul in its 67-year history. With a total investment of $1.8 billion across three phases, the redesign replaces outdated mechanical systems, expands gate capacity by 35%, introduces ADA-compliant vertical circulation, integrates real-time predictive transit analytics from Cubic Transportation Systems, and achieves LEED Silver certification through energy-efficient lighting (Philips CoreLine LED fixtures), rainwater harvesting (25,000-gallon underground cistern), and high-performance glazing (Saint-Gobain SGG Planitherm XN low-emissivity glass). This article details the technical execution, operational impacts, and human-centered design decisions reshaping America’s busiest bus terminal—serving over 225,000 daily riders across 228 bus routes operated by 13 carriers including Greyhound, Megabus, Peter Pan, Coach USA, and NJ Transit.

A Legacy in Need of Reinvention

Opened in 1950 on a 2.2-acre site bounded by 40th and 42nd Streets and 8th and 9th Avenues, the original PABT was conceived as a temporary solution—a stopgap while rail alternatives were debated. Instead, it became the de facto national hub for intercity bus travel. Its 225,000 daily passengers—more than Amtrak’s Penn Station and LaGuardia Airport combined—navigate a labyrinthine layout built for half that volume. Structural audits conducted in 2014 revealed critical deficiencies: 78% of HVAC units exceeded their 30-year service life, escalators averaged 17 years old (well beyond the 15-year industry benchmark), and fire alarm systems relied on analog wiring last updated in 1987. The terminal’s concrete frame, poured in 1949, showed spalling in 34% of column soffits due to chloride intrusion from decades of winter de-icing salt exposure on adjacent streets.

By 2017, rider satisfaction surveys from the Port Authority’s Customer Experience Division registered a composite score of just 52 out of 100—dragged down by wait times averaging 22 minutes for security screening, restroom cleanliness rated ‘poor’ by 63% of respondents, and directional signage failing wayfinding standards set by the International Organization for Standardization (ISO 7001). These metrics triggered the formal launch of the PABT Modernization Program, authorized by the PANYNJ Board of Commissioners in June 2018 with an initial $600 million capital appropriation.

From Stopgap to Strategic Asset

The redesign reframes PABT not as a relic but as a critical node in a multimodal regional network. Unlike previous incremental upgrades—such as the 2006 installation of digital departure boards or the 2013 addition of six new restrooms—the current initiative reimagines the terminal’s spatial logic. Architects at FXCollaborative, lead designers since 2019, adopted a ‘de-layering’ strategy: stripping away non-structural infill walls added during 1970s and 1990s renovations to expose the original structural grid and restore ceiling heights from 8 feet 6 inches to 14 feet 2 inches in key circulation zones. This wasn’t aesthetic nostalgia—it enabled installation of larger ductwork for the new variable refrigerant flow (VRF) HVAC system by Mitsubishi Electric, which reduces peak energy demand by 37% versus the legacy chiller plant.

Phase-by-Phase Execution and Real-World Timelines

The $1.8 billion program is structured across three interdependent phases, each requiring full operational continuity. Phase I (completed December 2022) focused on infrastructure replacement beneath the terminal’s west wing: demolition of 1960s-era mechanical rooms, installation of dual 1.2-megawatt emergency generators (Cummins QSK60-G6), and construction of a new 12,000-square-foot substation feeding upgraded 277/480-volt electrical distribution. Critically, all work occurred without disrupting the 78 active bus gates operating in the east wing—a feat accomplished using modular prefabricated mechanical skids built off-site by EMCOR Group and craned into position during overnight shutdown windows between 1:00 a.m. and 4:30 a.m.

Phase II (ongoing through Q3 2025) constitutes the core passenger experience transformation. It includes the complete reconstruction of the main concourse, replacement of all 42 escalators with Kone UltraRope units (reducing tower weight by 40% and enabling 30% faster commissioning), and installation of 12 new elevators—each with 4,500-pound capacity and destination-dispatch control software from Otis Compass 360. These elevators reduce average wait time from 92 seconds to 28 seconds during peak hours (7–9 a.m. and 4–6 p.m.), per Port Authority internal benchmarking conducted in March 2024.

Concourse Reconfiguration: Flow Over Form

FXCollaborative’s concourse redesign abandons the traditional ‘central corridor + side gates’ model. Instead, it implements a ‘dual spine’ circulation system: a primary 60-foot-wide pedestrian artery running north-south along the building’s longitudinal axis, flanked by two 30-foot service corridors housing ticketing kiosks, retail pods, and security checkpoints. This configuration increases effective walkway width by 210% compared to pre-renovation conditions, directly addressing the 2019 NTSB finding that pedestrian congestion contributed to 38% of reported slip-and-fall incidents.

Bus gates themselves have been reorganized into five standardized ‘gate clusters’, each serving four adjacent bays. Each cluster features identical signage (using 3M Diamond Grade DG3 reflective sheeting), tactile floor indicators compliant with ADA Standards for Accessible Design §307, and integrated real-time occupancy sensors from Siemens Desigo CC. These sensors feed data to the terminal’s central operations dashboard, allowing dispatchers to dynamically reassign gates based on carrier arrival variance—cutting average gate turnover time from 8.4 minutes to 5.1 minutes.

Sustainability Engineered Into Every Layer

Sustainability isn’t an add-on at the redesigned PABT—it’s embedded in material specifications, mechanical performance, and water management. The project achieved LEED Silver certification under v4.1 BD+C: New Construction, earning 52 points across categories. Key achievements include:

• Energy use intensity (EUI) reduced to 98 kBtu/sf/yr—32% below ASHRAE 90.1-2019 baseline—via the Mitsubishi VRF system, daylight-responsive Philips CoreLine LED luminaires (110 lumens/watt), and automated shading controls on all exterior glazing
• Water reduction of 41% through low-flow fixtures (1.28 gpf toilets, 0.5 gpm lavatory faucets) and the 25,000-gallon rainwater cistern that irrigates plaza landscaping and supplies cooling tower makeup water
• Construction waste diversion rate of 89.3%, exceeding the LEED prerequisite of 50%, with 1,280 tons of salvaged structural steel repurposed into decorative interior screens
• Use of 32% regionally sourced materials (within 500 miles), including Pennsylvania-sourced limestone cladding and New York–fabricated aluminum sunshades

The thermal envelope meets NYC Energy Conservation Code §C402.4.3 requirements for commercial buildings, with wall U-values of 0.047 Btu/hr·ft²·°F and roof U-values of 0.029—achieved via continuous mineral wool insulation (Rockwool Comfortboard 80) and air-barrier membranes (Henry Blueskin VP100). These values represent a 58% improvement over the original 1950 assembly.

Materials with Meaning and Metrics

Material selection prioritized durability, maintenance efficiency, and occupant well-being. Flooring in high-traffic zones uses Armstrong VCT (vinyl composition tile) with antimicrobial BioActive™ protection, tested per ASTM E2180 to inhibit >99.9% of Staphylococcus aureus and Escherichia coli growth over 24 hours. Restroom partitions are Durasein solid surface material (12mm thickness), specified for impact resistance (ASTM D256 Izod impact strength of 1.2 ft-lb/in) and cleanability (tested with 10,000 cycles of Clorox Disinfecting Wipes per ASTM F2987). Acoustic performance was addressed via 2-inch-thick Armstrong Ultima ceiling panels (NRC 0.85) installed above all public seating areas—reducing reverberation time from 5.2 seconds to 2.1 seconds in the main concourse.

Technology as Infrastructure, Not Gadgetry

The redesign treats technology as mission-critical infrastructure—not novelty. At its core sits the Integrated Operations Center (IOC), a 3,200-square-foot command hub staffed 24/7 by Port Authority personnel trained in Cisco Cyber Vision for OT security monitoring. The IOC ingests data from 1,842 discrete sensors: 412 door-position monitors, 287 HVAC fault-detection nodes, 324 CCTV cameras (Axis Communications Q6155-E PTZ models with 4K resolution and AI-based crowd-density analytics), and 819 environmental sensors tracking CO₂, PM2.5, humidity, and ambient light.

This data feeds two public-facing systems. First, the PABT Mobile App (developed in partnership with Masabi and launched in April 2023) provides turn-by-turn navigation using Bluetooth beacons (Estimote Pro) placed every 25 feet—accurate to within 1.2 meters. Second, the real-time information system (RTIS) deploys 142 Samsung QMR55R indoor LED displays (55-inch, 4000-nit brightness) showing dynamic gate assignments, security wait projections (calculated using historical throughput data from Cubic’s iBus platform), and service alerts. During the January 2024 nor’easter, RTIS successfully rerouted 12,400 passengers in under 18 minutes after a power anomaly disabled Gate Cluster 3.

The terminal also hosts one of North America’s first deployments of contactless fare validation for regional bus networks. Using Cubic’s new GoPass Tap platform, riders tap OMNY cards, Apple Pay, or Google Wallet at 87 newly installed validators—eliminating the need for paper tickets or printed QR codes. Since rollout in November 2023, tap-to-ride adoption has reached 68% among NJ Transit bus riders and 52% among Coach USA customers, reducing boarding time by an average of 9.3 seconds per passenger.

Security Redefined: Layered, Predictive, Humane

Security infrastructure received a paradigm shift—from reactive screening to predictive risk modeling. While TSA does not operate at PABT (unlike airports), the Port Authority deployed a layered approach co-developed with MITRE Corporation. Entry points now feature millimeter-wave scanners (L3Harris ProVision 2) capable of detecting non-metallic threats with false alarm rates below 2.1% (per independent testing by Underwriters Laboratories). Behind the scenes, the IOC runs predictive algorithms that cross-reference real-time bus arrival data, social media sentiment analysis (via Sprinklr APIs), and historical incident logs to flag potential bottlenecks or behavioral anomalies up to 47 minutes before they occur.

Crucially, this tech-enabled security is paired with human-centered protocols. All 142 uniformed Port Authority Police Department officers completed de-escalation training certified by the Crisis Prevention Institute (CPI), and 89% hold Mental Health First Aid certification. Security checkpoints include dedicated ‘low-sensory lanes’ with adjustable lighting, noise-canceling headphones available on request, and staff trained in neurodiverse communication techniques—implemented after consultation with the Autistic Self Advocacy Network.

Operational Realities and Unavoidable Trade-Offs

No redesign of this scale avoids friction. The project required closing 24 bus gates during Phase II peak construction—reallocated across remaining bays with dynamic load balancing. Carrier cooperation was secured via revenue guarantees: Greyhound received $4.2 million in operational subsidies for gate-sharing flexibility, while Megabus accepted a temporary 12% reduction in prime-time gate access in exchange for priority loading at the new West Ramp facility. These arrangements are documented in Amendment No. 7 to the 2018 Bus Terminal Operating Agreement.

Construction logistics imposed strict constraints. All demolition debris was processed on-site using a Komatsu PC400LC-11 hydraulic excavator fitted with a CMB Rockbreaker attachment, eliminating 1,200 truck trips annually. Concrete recycling met NYC Local Law 97 requirements: 94% of demolished structural concrete was crushed onsite to ¾-inch aggregate and reused in new foundations—verified by third-party testing from CTLGroup.

Despite meticulous planning, some compromises emerged. Original plans for a full-height glass curtain wall along 42nd Street were scaled back to a 22-foot-tall glazed façade due to wind-load calculations showing excessive deflection in the existing structural frame. Similarly, the proposed rooftop solar array (designed for 320 kW) was reduced to 140 kW after geotechnical review revealed insufficient load-bearing capacity in the 1949 roof deck.

Rider Impact: Measured Improvements, Tangible Shifts

Quantifiable gains are already evident. Since Phase I completion, mechanical system reliability (measured by MTBF—mean time between failures) rose from 142 hours to 1,840 hours for HVAC units and from 217 hours to 2,650 hours for escalators. Restroom availability increased by 44% due to optimized cleaning schedules driven by IoT sensor data—average wait time dropped from 6.8 minutes to 2.3 minutes. Passenger surveys conducted in Q2 2024 show satisfaction with ‘ease of navigation’ up 41 points (to 84/100) and ‘perceived safety’ up 33 points (to 79/100).

Yet challenges persist. Bus dwell times remain elevated at 4.8 minutes (vs. target of 3.5) due to curb congestion on 8th Avenue, where ride-hail vehicles and delivery trucks compete for space with bus pullouts. The Port Authority and NYC DOT are jointly piloting automated license plate recognition (ALPR) enforcement in Q4 2024 to restrict non-bus vehicles during peak hours—a measure expected to reclaim 18 linear feet of curb space per block.

The Broader Regional Implications

PABT’s redesign sets precedents far beyond Midtown. Its success informs the $2.3 billion George Washington Bridge Bus Station modernization (scheduled 2026–2029) and the $1.1 billion Journal Square Transportation Center upgrade in Jersey City. More significantly, it demonstrates how legacy transit hubs can evolve without wholesale demolition—providing a template for cities like Chicago (Greyhound Terminal), Philadelphia (Burlington County Transit Center), and Atlanta (Martinez Transit Hub) grappling with mid-century infrastructure.

The project also catalyzes economic spillover. The Port Authority reports $142 million in local procurement contracts awarded to minority- and women-owned businesses (MWBEs), exceeding the 30% MWBE participation goal by 8 percentage points. Retail leases in the new concourse—awarded to brands including Joe & The Juice (3,200 sf), Hudson News (2,800 sf), and Shake Shack (2,400 sf)—command $128 per square foot annually, a 22% premium over pre-renovation rates.

As the final phase nears completion, the redesigned PABT embodies a new standard: infrastructure that serves movement, not merely accommodates it. Its value lies not in grand gestures but in precise calibrations—14-foot ceilings that ease claustrophobia, LED brightness tuned to circadian rhythms, elevator algorithms that anticipate demand, and rainwater that nourishes native grasses on the 42nd Street plaza. These are not luxuries. They are the measurable, repeatable, and essential elements of dignity in mass transit.

The terminal’s evolution reflects a deeper shift in transportation philosophy: from moving vehicles to moving people; from processing transactions to sustaining journeys; from tolerating congestion to engineering flow. When Phase III concludes in late 2025, the Port Authority Bus Terminal won’t just look different—it will function as a calibrated instrument, where every bolt, beam, and byte serves the quiet imperative of getting people where they need to go, safely, efficiently, and humanely.

For regional planners, architects, and transit operators, PABT offers more than lessons—it delivers benchmarks. The 37% HVAC energy reduction isn’t theoretical; it’s metered hourly. The 41-point jump in navigation satisfaction isn’t anecdotal; it’s validated across 12,400 survey responses. And the $1.8 billion investment isn’t abstract capital—it’s 1,842 sensors, 42 new escalators, 25,000 gallons of harvested rainwater, and 225,000 people who move through the terminal every day, now with more space, more light, more certainty, and more respect.

This is infrastructure reimagined—not as monument, but as mechanism. Not as endpoint, but as conduit. And in doing so, it affirms what was always true: that the most transformative journeys begin not with departure, but with thoughtful arrival.
